SparkFun SSOP to DIP Adapter

SparkFun SSOP to DIP Adapter

16, 20 and 28-Pin SSOP to DIP break out boards.

The footprint was rotated to accommodate different width SSOP devices and can be used with any pin count up to 28 pins.

Designed to be used with 0.65mm pitch devices but can also be used with 0.025" pitch devices (comes out to ~0.635mm). We've made these 0.635mm devices fit just fine.

40 Pin break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets. Pad layout fits all standard SSOP .65mm and can accommodate .635mm pitch devices.

Features

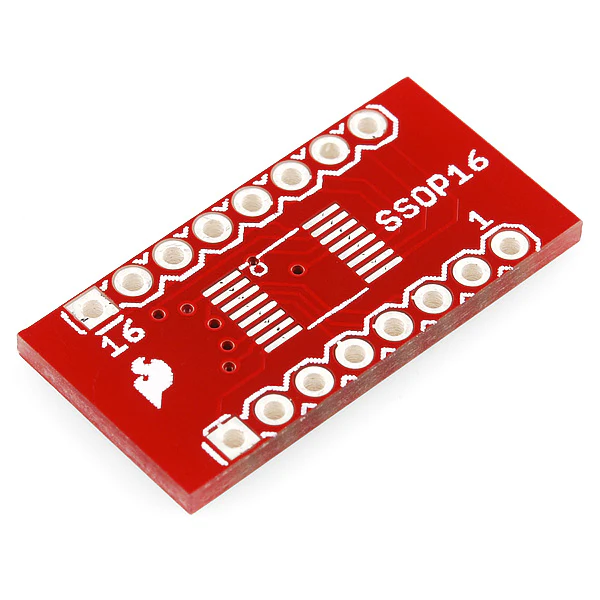

  • 16-pin: 1.0 x 0.4" (25.4 x 10.16mm) 400mil DIP spacing

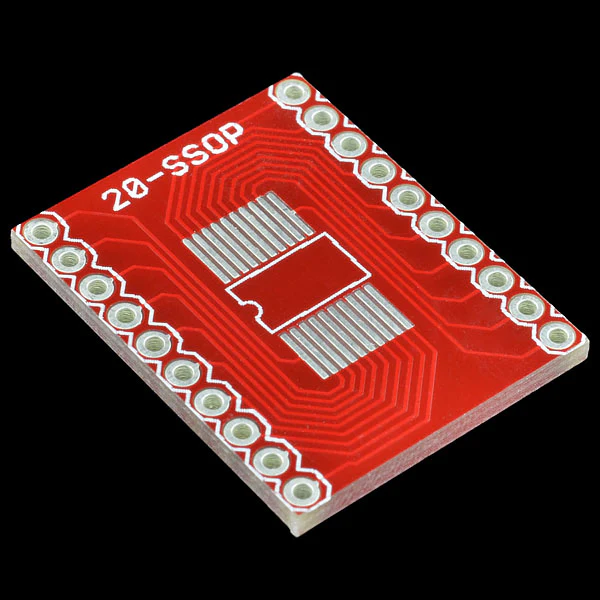

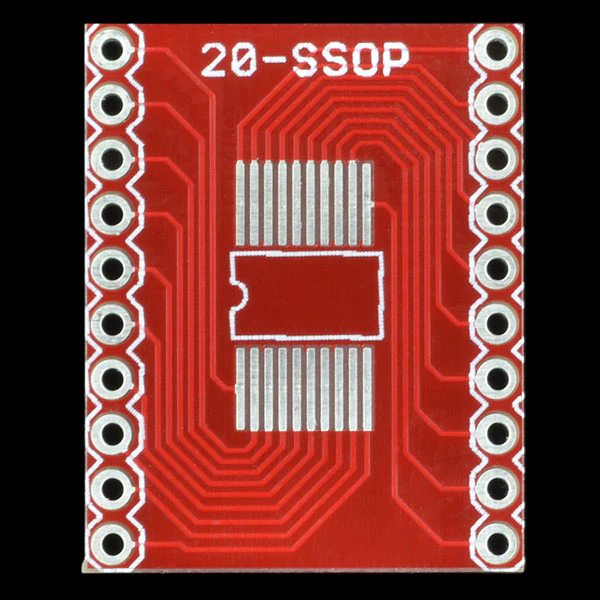

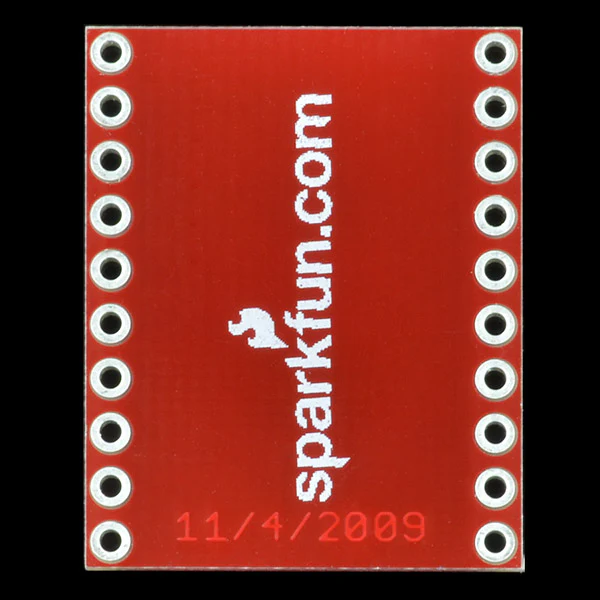

  • 20-pin: 0.8 x 1.0" (20.32 x 25.4mm) 700mil DIP spacing
  • 28-pin: 1.4 x 0.7" (35.56 x 17.78mm) 600mil DIP spacing.
