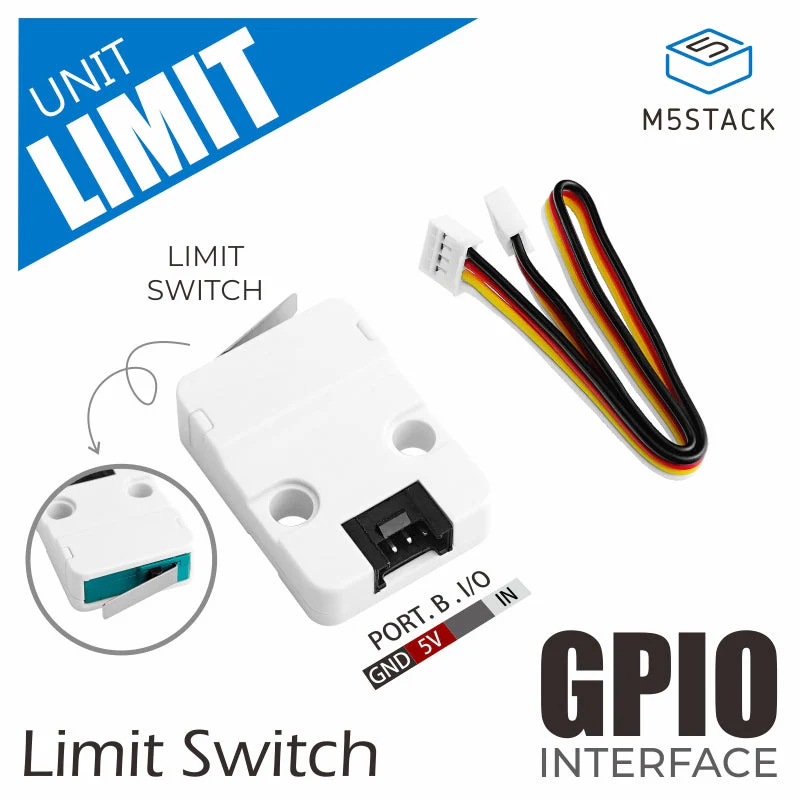

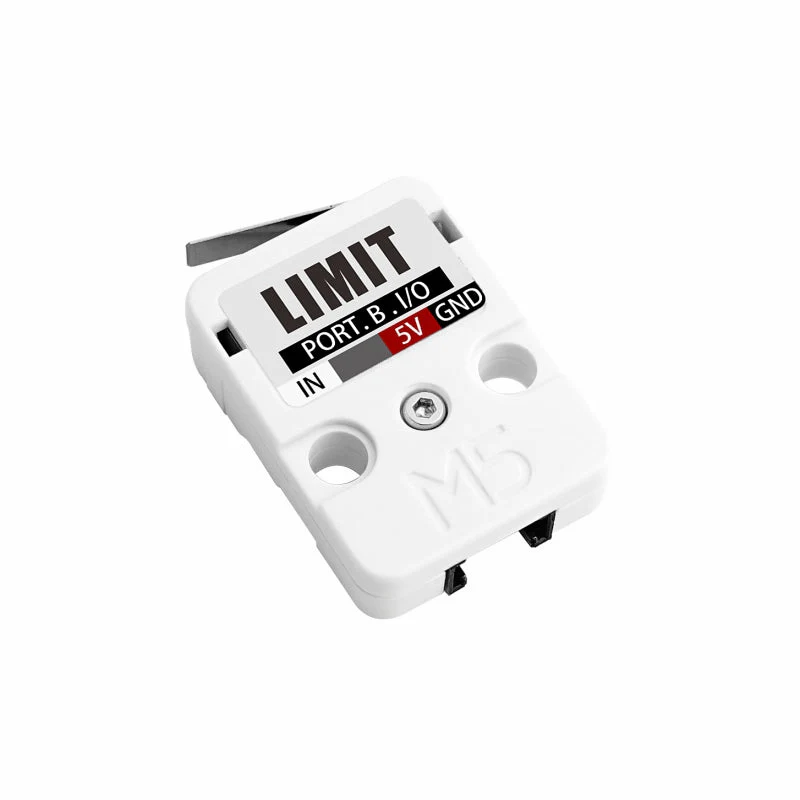

Limit Switch Unit
Unit Limit is a limit switch sensor.
When the switch bar is pressed, the digital single of the Unit would change from 3.3V to 0V, which may generate a limit signal to MCU or other peripherals. Applied for multiple mechanical equipments, to achieve limit protection.
Features
- Contact limit switch
- Long durability, upto 400K times lifetime
- Multiple installation methods
Includes
- 1x Unit limit
- 1x HY2.0-4P Cable (20cm)
Application
- Stop switch/Limit switch
Specification
| Spec | Parameter |
|---|---|
| Switch Bar Length | 16mm |
| Mechnical Lifetime | 400K Times |
| Power Supply | DC 5V |
| Output Logical Signal | DC 3.3V |
| Standby Current | DC5V@2mA |
| Operation Current | DC5V@3mA |
| Net Weight | 6.3g |
| Gross Weight | 11.4g |
| Product Size | 37 x 24 x 9.5mm |
| Package Size | 92 x 135mm |
Documentation
