PiBorg Motor 12V 300RPM - 37mm (MonsterBorg)
12V 300RPM, 37mm Diameter DC Motor! Built to PiBorg specification and specially made for awesome robots! PiBorg motors comes with wires pre-soldered, so perfect for connecting straight to your project!

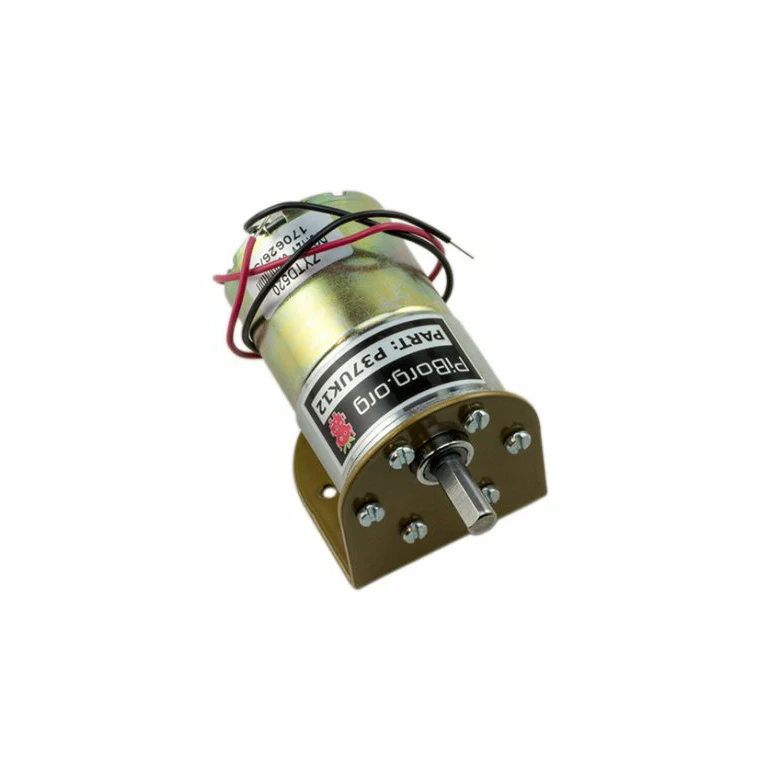

This motor features a 6mm diameter shaft so fits a 6mm hub, and can be mounted to a chassis using our Large Advanced Motor Bracket Mount! Please Note. This purchase is for the motor only.
These are the same motors that power theĀ MonsterBorg kits.
Technical Specification
- Part No. P37UK12
- Voltage: 12V
- Gearbox Reduction Ratio: 17.4
- No Load Speed (RPM): 300
- Rated Speed (RPM): 205
- Rated Torque (kg.cm): 1.02
- Rated Current (A): 0.716
- Stall Current (A): 2.7
- Shaft Diameter: 6mm
- Shaft Length: 14mm
- Motor Diameter: 37mm
- Motor Length:57mm
Downloads
Original: $12.50
-70%$12.50
$3.75More Images
PiBorg Motor 12V 300RPM - 37mm (MonsterBorg)
12V 300RPM, 37mm Diameter DC Motor! Built to PiBorg specification and specially made for awesome robots! PiBorg motors comes with wires pre-soldered, so perfect for connecting straight to your project!
This motor features a 6mm diameter shaft so fits a 6mm hub, and can be mounted to a chassis using our Large Advanced Motor Bracket Mount! Please Note. This purchase is for the motor only.
These are the same motors that power theĀ MonsterBorg kits.
Technical Specification
- Part No. P37UK12
- Voltage: 12V
- Gearbox Reduction Ratio: 17.4
- No Load Speed (RPM): 300
- Rated Speed (RPM): 205
- Rated Torque (kg.cm): 1.02
- Rated Current (A): 0.716
- Stall Current (A): 2.7
- Shaft Diameter: 6mm
- Shaft Length: 14mm
- Motor Diameter: 37mm
- Motor Length:57mm
Downloads
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
12V 300RPM, 37mm Diameter DC Motor! Built to PiBorg specification and specially made for awesome robots! PiBorg motors comes with wires pre-soldered, so perfect for connecting straight to your project!
This motor features a 6mm diameter shaft so fits a 6mm hub, and can be mounted to a chassis using our Large Advanced Motor Bracket Mount! Please Note. This purchase is for the motor only.
These are the same motors that power theĀ MonsterBorg kits.
Technical Specification
- Part No. P37UK12
- Voltage: 12V
- Gearbox Reduction Ratio: 17.4
- No Load Speed (RPM): 300
- Rated Speed (RPM): 205
- Rated Torque (kg.cm): 1.02
- Rated Current (A): 0.716
- Stall Current (A): 2.7
- Shaft Diameter: 6mm
- Shaft Length: 14mm
- Motor Diameter: 37mm
- Motor Length:57mm
