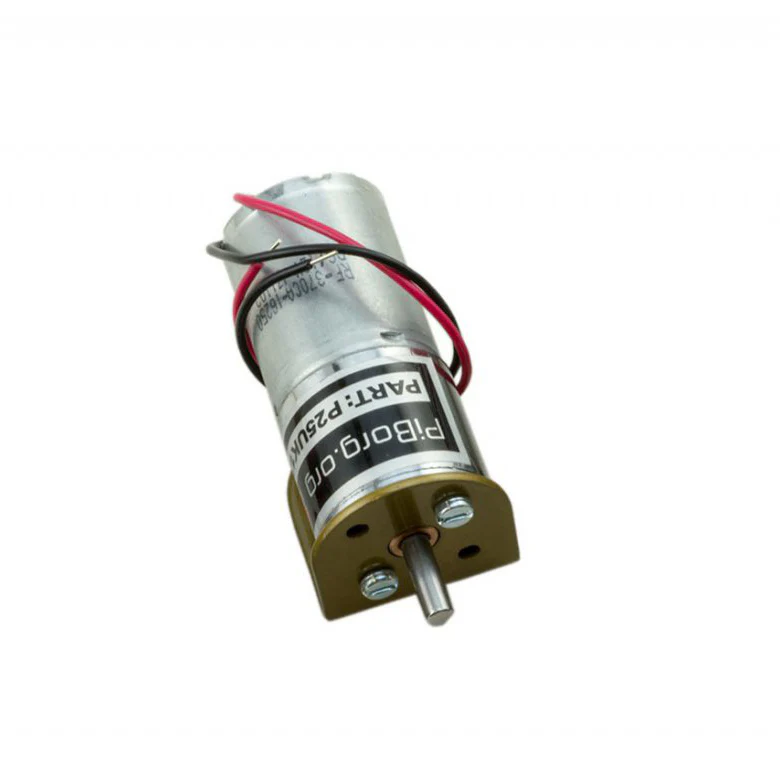

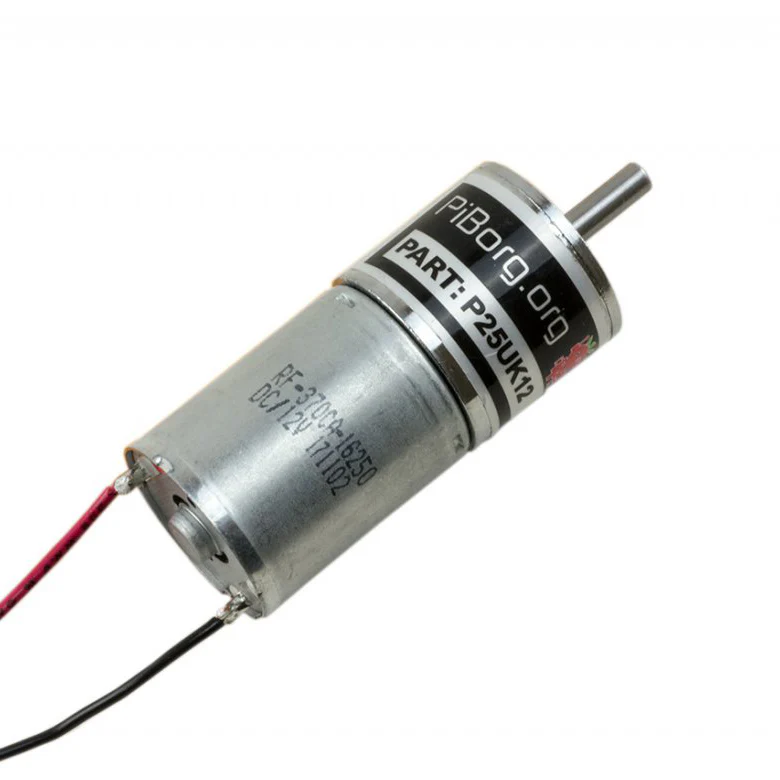

PiBorg Motor 12V 100RPM - 25mm

12V 100RPM, 25mm Diameter DC Motor! Built to PiBorg specification and specially made for awesome robots! PiBorg motors comes with wires pre-soldered, so perfect for connecting straight to your project!

This motor features a 4mm diameter shaft so fits a 4mm hub, and can be mounted to a chassis using the Advanced Motor Bracket Mount! Please Note. This purchase is for the motor only.

Technical Specification

• Part No. P25UK12
• Voltage: 12V
• Gearbox Reduction Ratio: 83
• No Load Speed (RPM): 100
• Rated Speed (RPM): 72
• Rated Torque (kg.cm): 1.44
• Rated Current (A): 0.376
• Stall Current (A): 2.0
• Shaft Diameter: 4mm
• Shaft Length: 12mm
• Motor Diameter: 25mm
• Motor Length: 53mm

Downloads

Datasheet & Dimensions
